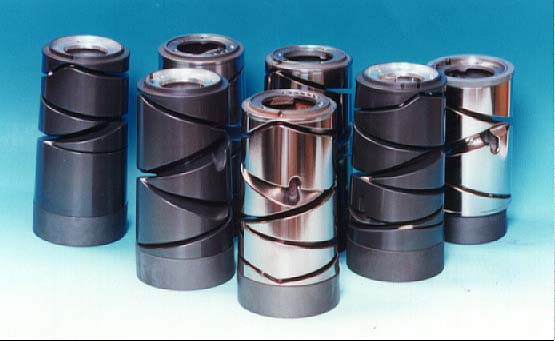

"DRUMS FOR MURATA MACHCONERS"

(ALUMINUM DRUMS)

Drum No.	Out dia.	Trav.	Pitches	Package Shape	Ceramics	Remarks
	(mm)	length			(pcs)
		(inch)
320-2.01-C3	109	3	1	0ß00' PARALLEL	3
430-2.01-C6	98	4	1.5	0ß00' PARALLEL	6
440-1.01-C7	98	4	2	0ß00' PARALLEL	7
443-1.01-C7	98	4	1.5	3ß30' CONE	7
445-1.01-C7	90.3/99.7	4	1.5/2.5	3ß00'- 6ß00' CONE	7	IRREGULAR PITCHES
530-2.11-C6	91	5	1.5	0ß00' PARALLEL	6
540-9.05-C7	91	5	2	0ß00' PARALLEL	7
550-3.02-C6	91(93)	5	2.5	0ß00' PARALLEL	6
560-1.01-C9	91	5	2.5	0ß00' PARALLEL	9	IRREGULAR PITCHES
5 3/4 30-1.02-C6	109(111)	5 3/4	1.5	0ß00' PARALLEL	6
5 3/4 40-2.04-C7	109(111)	5 3/4	2	0ß00' PARALLEL	7
630-9.01-C6	109	6	1.5	0ß00' PARALLEL	6
643-2.11-B6	91.5/99.5	6	2	3ß30'- 9ß15' CONE	6
643-14.02-C7	91.5/99.5	6	2	3ß30' CONE	7
643-24.01-C6	91.8/99.7	6	1.5/2.5	3ß30' CONE	6	IRREGULAR PITCHES
659-16.01-C8	91.5/99.7	6	2.5	9ß15' CONE	7
653-21.01-C7	91.7/99.6	6	2.5	3ß30' CONE	7
655-2.01-C8	91.8/99.7	6	2/3	3ß00'- 6ß00'CONE	8	IRREGULAR PITCHES
663-6.01-C7	91.7/99.6	6	3	3ß30' CONE	7
665-5.01-C9	91.8/99.7	6	2.5/3.5	3ß00'- 6ß00'CONE	9	IRREGULAR PITCHES
853-2.01-C8	99/110	8	2.5	3ß00'- 6ß00'CONE	8
853-4.01-C8	99/110	8	2.5	3ß00'- 6ß00'CONE	8
1063-2.01-C8	109	10	3	3ß00'- 6ß00'CONE	8

(STEEL DRUMS)

Drum No.	Out dia.	Trav.	Pitches	Package Shape	Ceramics	Remarks
	(mm)	length			(pcs)
		(inch)
530-2T.01-B6	91(93)	5	1.5	0ß00' PARALLEL	6
540-9T.01-B4	91(93)	5	2	0ß00' PARALLEL	4
540-15T.01-B2	91(93)	5	1.5/2.5	0ß00' PARALLEL	2	IRREGULAR PITCHES
643-14T.01-B3	91.8/99.7	6	2	3ß30'- 6ß00' CONE	3
643-24T.01-B3	91.8/99.7	6	1.5/2.5	3ß00'- 6ß00' CONE	3	IRREGULAR PITCHES
655-2T.01-B3	91.8/99.7	6	2/3	3ß00'- 6ß00' CONE	3	IRREGULAR PITCHES
665-5T.01-B3	91.8/99.7	6	2.5/3.5	3ß00'- 6ß00' CONE	3	IRREGULAR PITCHES
